Sheet Welding Machines

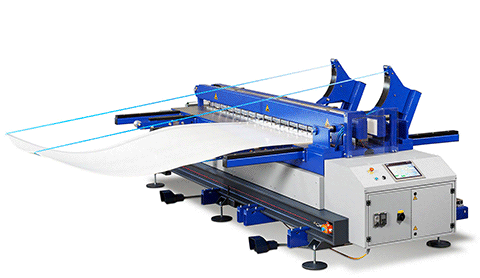

Sheet rolling device SR / RV

The useful and convenient - increases the process reliability during sheet rolling

Features:

  • Sheet rolling device for the production of manufacture reservoirs, tanks and containers
  • Suitable for material thicknesses up to 30 mm (RV up to 20 mm)
  • Sheet rolling device with different numbers of motors available for welding machines from 2 to 5 meters working width
  • Cylinder diameters from 800 mm to 4,000 mm can be produced in compliance with permissible strain of the outer fibre of the material
  • Optionally Add-on kit to produce smaller cylinder diameters from 500 mm to 800 mm
  • Standard with hand termial (by cable) to operate all round drawing functions
  • The use of other aids (crane, fork-lift truck, etc.) is depending on the length of the blank to be produced and the material thickness necessary
  • Fixation of the motors on the floor ground; customer must provide and ensure a sufficiently stable base
  • Siemens PLC and Lenze frequency converter for motor control.

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics

Technical Data

RV SR SRX.2
Numbers of motors: 2, 3, 4 2, 3, 4, 5 2, 3, 4
Material thickness (mm): up to 20 up to 30 up to 38
Cylinder diameter (mm):
Optional:
800 to 4,000
500 to 800
800 to 4,000
500 to 800
800 to 4,000
Power consumption (kW): 2 / 3 / 4 2 / 3 / 4 / 5 2.5 / 3.5 / 4.5
Power Supply: 230/400 V
3/N/PE 50/60 Hz
230/400 V
3/N/PE 50/60 Hz
230/400 V
3/N/PE 50/60 Hz

Options

  • Add-on kit for SR output range to produce smaller cylinder diameters from 500 mm to 800 mm
