Extrusion Welding

EXWELD Pellet Extrusion Welder

EXWELD alpha3 EC P and beta3 EC P

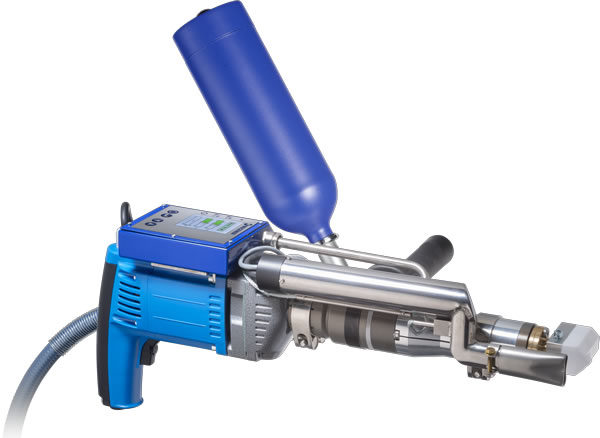

photo EXWELD alpha3 EC P

EXWELD Pellet Extrusion Welder

EXWELD alpha3 SC P, beta3 SC P, gamma3 EC P

photo EXWELD alpha3 SC P

Features:

  • WEGENER microprocessor control system for air and extrudate temperature, and to control the motor
  • Own air supply in the SC version through a WEGENER brushless Airbox 2,200 W
  • External air supply in the EC version through a WEGENER air heater 2,500 W
  • Switch between actual and target value display for air heater and extrudate temperature
  • Cold start protection (start-up protection dependent on time and temperature)
  • Monitoring of the pre-set target temperature of the extrudate heater with motor-stop function if the deviation is too high
  • Easily exchangeable PTFE welding shoe, adjustable front handle
  • The scope of delivery includes a welding shoe of your choice

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacturer of plastic apparatus, pipeline construction, ventilation, automotive, roofing, landfill technology

Materials:

suitable for welding PE, PP, PVDF and other weldable thermoplastic material in pellet or granulate form.


Accessories:

Welding Shoes alpha3 >
Welding Shoes beta3 >
Welding Shoes gamma3 >

Accessories >


Downloads:

Brochure Extrusion Welders for PVC and Pellets
Spare Parts List alpha3 EC P
Spare Parts List alpha3 SC P
Video Extruder

Technical Data alpha3 SC P
Item no. 30286
alpha3 EC P
Item no. 30287
beta3 SC P
Item no. 30288
beta3 EC P
Item no. 30289
gamma3 EC P
Item no. 30290
Power supply: 230 V 1/N/PE 50/60 Hz 230 V 1/N/PE 50/60 Hz 230 V 1/N/PE 50/60 Hz 230 V 1/N/PE 50/60 Hz 230 V 1/N/PE 50/60 Hz
Power consumption: 3,660 W 3,960 W 4,560 W 5,360 W 5,760 W
Air requirement: self-contained air supply >300 l/min self-contained air supply >300 l/min >300 l/min
Heating capacity (air): 2,200 W 2,500 W 2,200 W 3,000 W 3,000 W
Welding capacity (PE): approx.3 kg/h approx. 3 kg/h approx. 4.6 kg/h approx. 4.6 kg/h approx. 6.2 kg/h
Welding capacity (PP): approx. 3 kg/h approx. 3 kg/h approx. 4.3 kg/h approx. 4.3 kg/h approx. 5.6 kg/h
Welding rod diameter:: pellet / granulate pellet / granulate pellet / granulate pellet / granulate pellet / granulate
Weight: 7.3 kg 6.7 kg 11.0 kg 10.3 kg 10.5 kg
Dimensions (L x H x W in mm): 530 x 550 x 140 530 x 550 x 135 590 x 670 x 140 530 x 670 x 150 530 x 670 x 150
