Sheet Welding Machines

Compact Butt Welding Machine Model SC

The compact - for working width up to 1.0 m, 1.5 m and 2.0 m

Features:

  • Compact welding machine for working width up to 1.0 m, 1.5 m and 2.0 m
  • Patented mechanical synchronisation of the working tables; a must to achieve a homogeneous application of pressure in the weld seam area. An absolute novelty in the field of compact welding machines
  • Siemens PLC with 2.8" display
  • Sturdy welded construction
  • Possibility of prolonging or shortening the process times during the welding cycle
  • Very low space requirements

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics

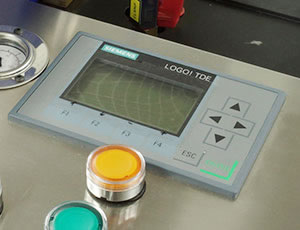

2.8“ Display

Optional 5.7“ Display

swimming pool construction

Technical Data

SC 101 SC 151 SC 201
Machine Length (mm): 1,430 1,930 2,430
Machine WIdth (mm): 1,000 1,000 1,000
Machine Height (mm): 1,250 1,250 1,250
Total Weight (kg): 350 450 550
Max. working width (mm): 1,050 1,550 2,050
Weldable sheet thickness (mm):
PE [0.15 N/mm²]: 3 to 20 3 to 15 3 to 15
PP [0.10 N/mm²]: 3 to 20 3 to 20 3 to 20
PVDF [0.10 N/mm²]: 3 to 20 3 to 20 3 to 20
PVC-C at 6 bar [0.50 N/mm²]: ≤ 6 ≤ 4.5 ≤ 4.5
PVC-U at 6 bar [0.60 N/mm²]: ≤ 5 ≤ 3.75 ≤ 3.75

Min. channel cross section inside dimension
(W x H in mm)*:
310 x 210 310 x 210 310 x 210
Min. cylinder diameter (mm)*: 400 400 400
Power Supply Standard: 230V 1/N/PE 50/60 Hz
Power supply with option height adjustable clamping beams: 230/400V 3/N/PE 50/60Hz
Power consumption standard (kW): 1.5 2.0 2.5
Power consumption with option height adjustable clamping beams (kW):

2.5

3.5 4.5
Compressed air connection (bar): 6 6 8
Clamping force at full load pressure in kN: 5.9 8.2 9.8
Min. Table force (N): 250 280 380
Table force max. at full load pressure in kN 3 3.4 4.5
Heating element standard Teflon coated
Tmax= 260 °C (B x H in mm):
20 x 50 20 x 50 20 x 50
Heating element with option height adjustable clamping beams, Teflon coated
Tmax= 260 °C (B x H in mm):
20 x 80 20 x 80 20 x 80

Options

  • Siemens PLC with 7" full graphics touchscreen; Process forces regulated via proportional valve
  • Height-adjustable, 2-stage clamping beam to process up to 20/15 mm thick panels (PE/PP); Hollow Sheets up to 58 mm
  • 90° welding device to produce corner welds only in combination with Siemens S7 1200 PLC with 7“ touchscreen
  • Material property data records (parameters) with automated choice of specific welding pressures, temperatures and time
  • Foot switch
  • Infinitely variable clamping force
  • Special energy supply
  • Special paintwork
