without Welding Torch

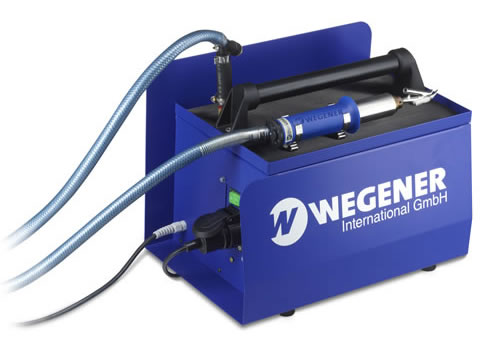

| WEG AB 60 Item no.: 24528 |
|---|
| Air Blower for 1 Hot Air Welding Torch |
| approx. 60 l/min. |
| rated pressure 0.15 bar |
| power consumption 64 W |
| 230 V 50/60 Hz |
| low noise level <49 db(A) |
| power socket for 1 welding torch |
| integrated carrier for welding torch Duratherm / Autotherm3 |
| placement area for nozzles and accessories |
| closed cabinet with defined air supply |
| weight: 13.8 kg |
without Welding Torch
| WEG AB 120 L Item no. 24530 |
|---|
| Air Blower for 1 up to 2 Hot Air Welding Torches |
| approx. 120 l/min |
| rated pressure 0.15 bar |
| power consumtion 130 W |
| 230 V 50/60 Hz |
| low noise level <49 dB(A) |
| power socket for 2 welding torches |
| air flow meter for 1 welding torch |
| integrated carrier for welding torch Duratherm / Autotherm3 |
| placement area for nozzles and accessories |
| closed cabinet with defined air supply |
| weight: 20.7 kg |
| DT 4 Item no. 15857 |
|---|
| Air Blower for 1 Hot Air Welding Torch |
| 0.4 bar, up to 60 l/min |
| 0.35 kW AC motor, 230 V |
| 1 socket |
| Low operation noise |
| Weight: 10.8 kg |
| DT 6 / DT 6L Artikel-Nr.: 10825 / 10826 |
|---|
| Air Blower for 1 up to 2 Hot Air Welding Torches |
| 0.6 bar, up to 2 x 60 l/min |
| 0.35 kW AC motor, 230 V |
| 2 sockets |
| Low operation noise |
| Especially suitable for long air supply hoses (assembling) |
| equal to DT 6 incl. with additional Air flow meter |
| Weight: 14.7 / 15.4 kg |

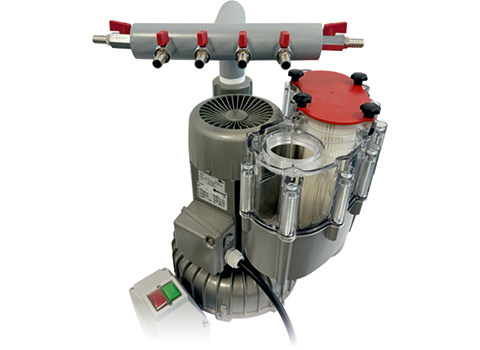

| DT 14.2 Item no. 44163 |
|---|
| Particularly appropriate for work shop supply as constructed for continuous, maintenance free operation |
| Connections for 6 welding torches |
| Very low operation noise |
| Absorber with filter manometer |
| 230/400 V 3/N/PE 50/60 Hz 1,1 kW |
| Weight: 27 kg |
| DT 16 Item no. 14177 |
|---|
| On-site blower for extrusion welders with external air supply |
| 350 l/min at 0.6 bar |
| 1.1 kW alternating current motor, 230 V |
| Air distributor for one extrusion welder |
| Integrated pressure relief valve |
| 2.5 m connection cable with plug |
| Weight: 41 kg |
| Available as 120V version: Item no. 39658 |
